The best in the world, 12 / 6  pole winding in 48 slots

ACW
Jan 10, 2016
1 min read

Offer for manufacturers and designers of electric motors, as well as technicians dealing with motor repair. If you are dealing with motor design, you probably know the reason why this slot-pole combination is so tricky.

We have managed to create a winding with the lowest content of harmful harmonics ( 4 times lower then usually).

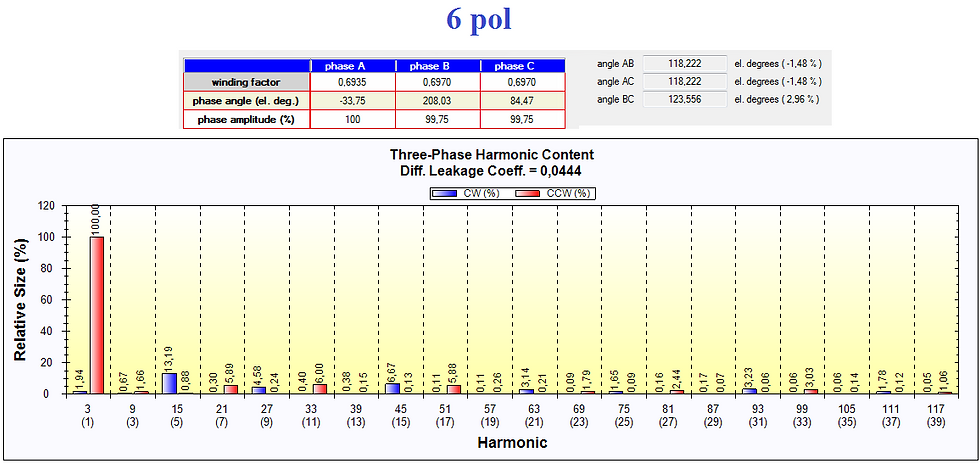

Please review obtained winding parameters and contact us if you want to apply it.
